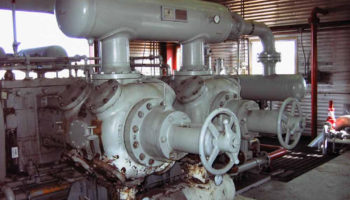

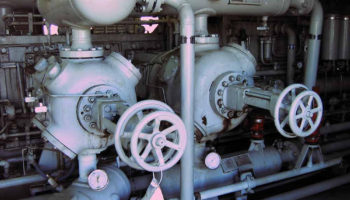

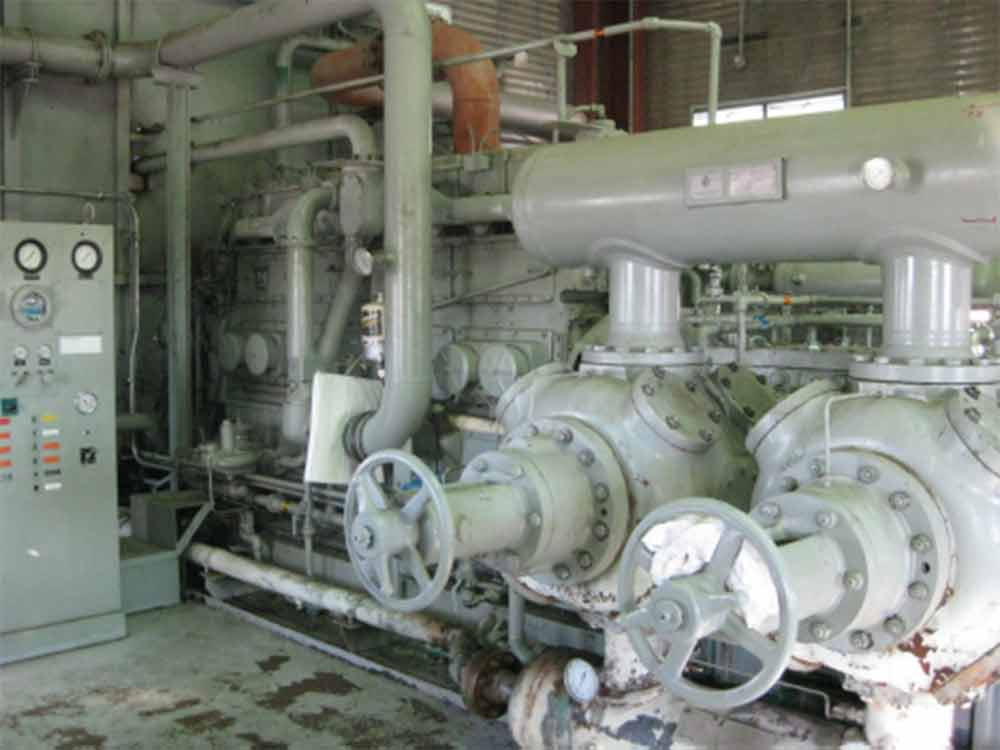

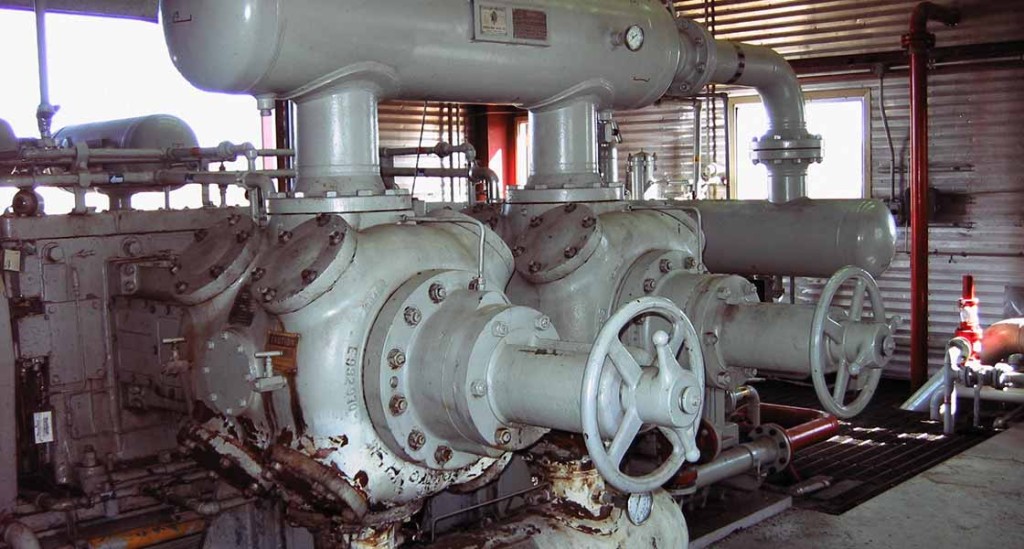

Superior Compressor Package

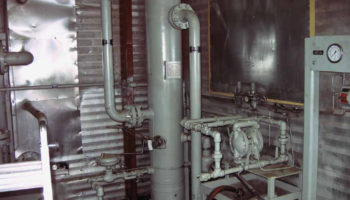

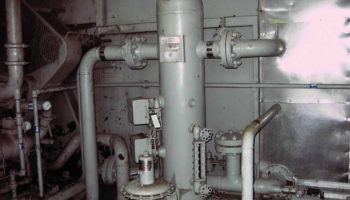

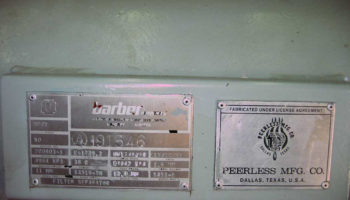

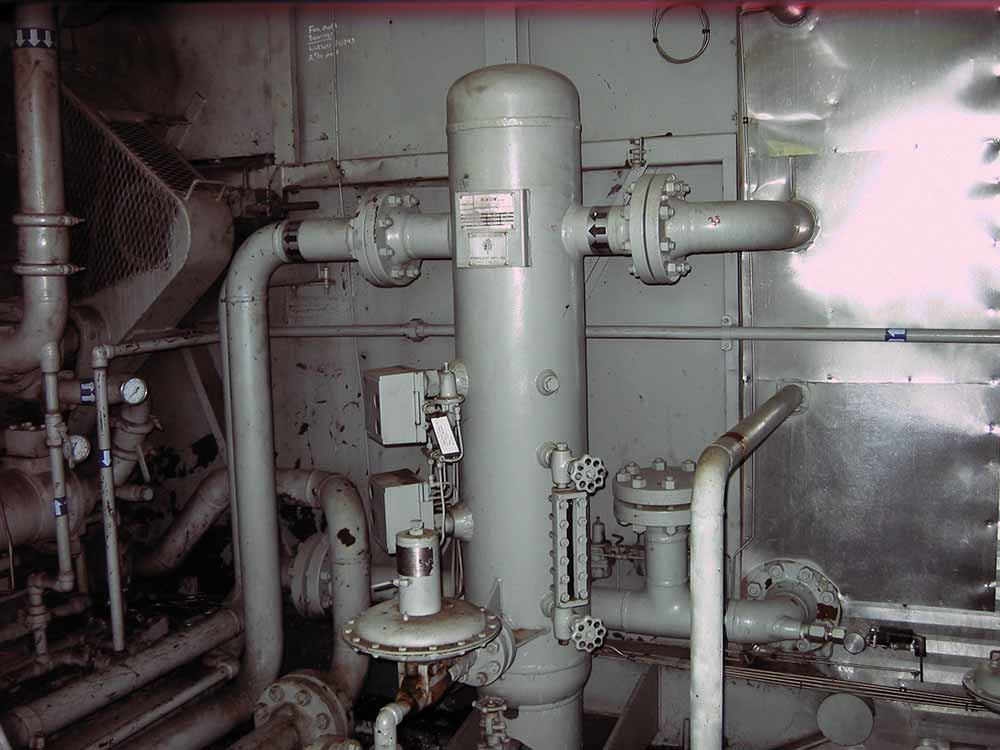

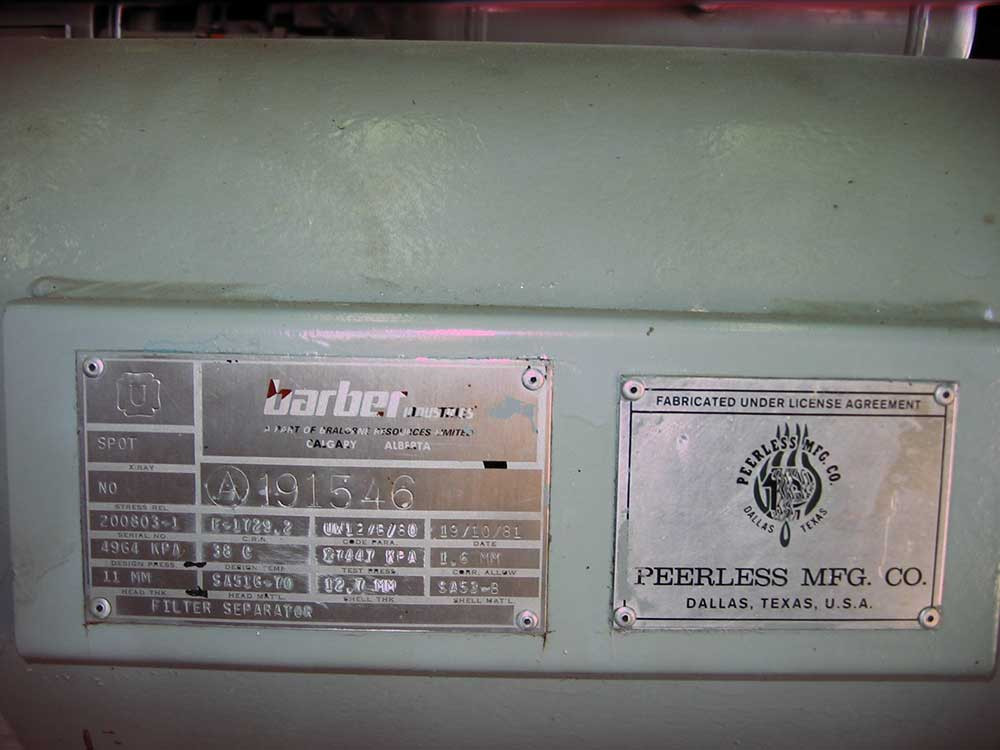

FILTER SEPARATOR

Design Pressure: 4964 KPA
Design Temperature: 38 C
Test Pressure: 7447 KPA
Correction Allowance: 1.6 MM
Head Thickness: 11 MM
Head Material: A516-70
Shell Thickness: 12.7 MM
Shell Material: SA53-B

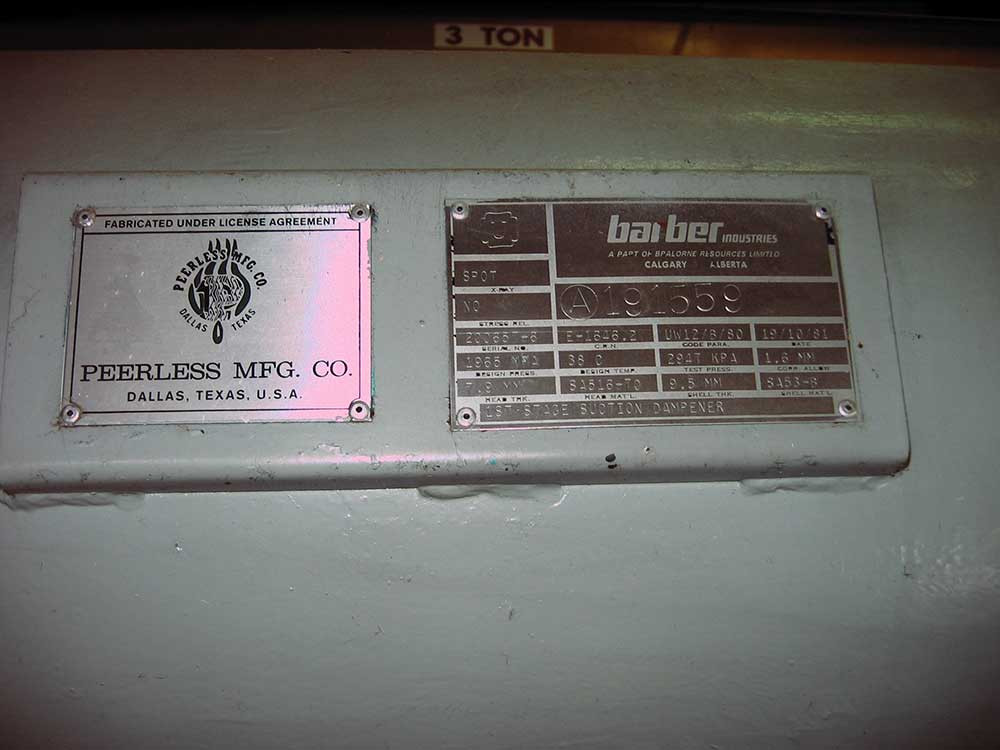

1ST STAGE SUCTION DAMPENER

Design Temperature: 38 C
Test Pressure: 2947 KPA
Correctional Allowance: 1.6 MM
Head Thickness: 7.9 MM
Head Material: SA516-70
Shell Thickness: 9.5 MM
Shell Material: SA53-B

2ND STAGE SUCTION DAMPENER

Design Temperature: 148 C
Test Pressure: 11117 KPA
Correctional Allowance: 1.6 MM
Head Thickness: 11 MM
Head Material: SA234-WPB
Shell Thickness: 12.7 MM
Shell Material: SA53-B
